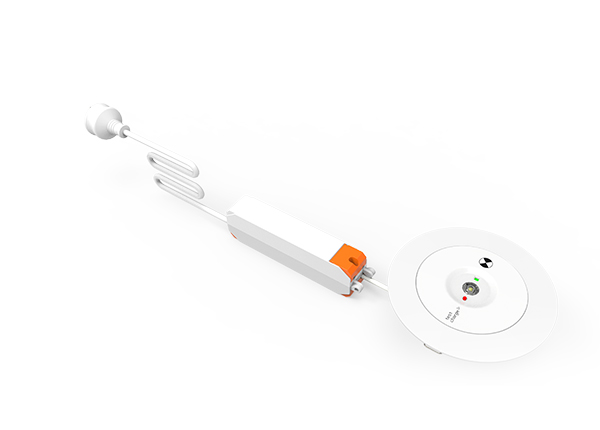

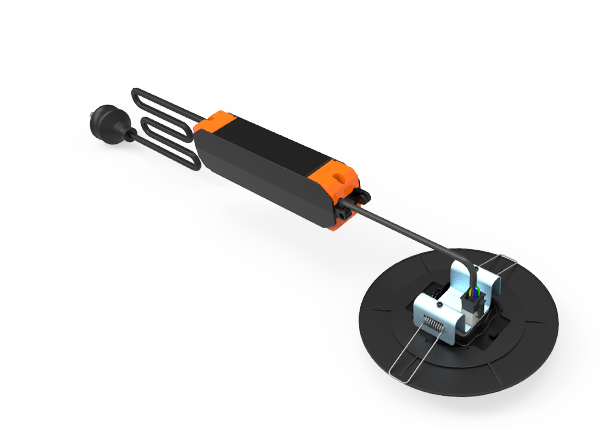

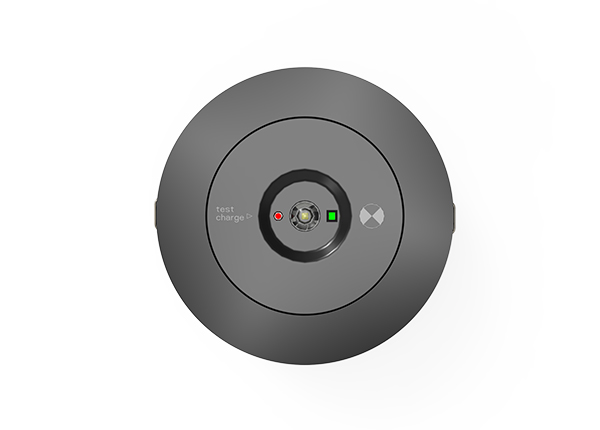

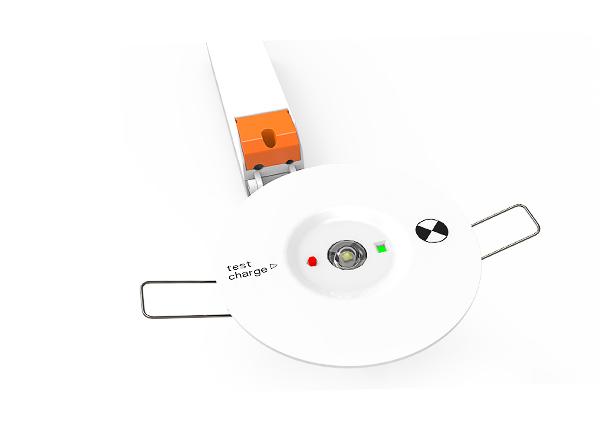

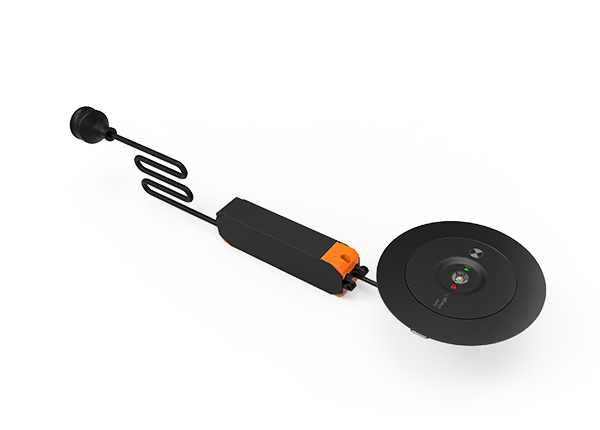

Xlite A1-EM33-LI

he Elphinstone series offer a practical and durable solution to escape route signage which can help reduce costly battery maintenance costs. emergency lights are crucial for the safe evacuation of people inside a building. It’s important that you can be confident your exit and emergency lights are working at all times. These lights have their own power supply which allows them to mark the way out of a building in an emergency.

3W NON-MAINTAINED EMERGENCY LAMP

-LED emergency converter that can transfer standard LED fitting into emergency LED fitting..

-Used with Lithium iron phosphate (LiFePO4)battery.

-Accessory:test switch and charge indicator.

3W NON-MAINTAINED EMERGENCY LAMP

Relevant standard
-IEC 61347-1 / -IEC 61347-2-7 / -EN 55015 / -IEC 60598-2-22 / -AS2293.3

WHY 3W NON-MAINTAINED EMERGENCY LAMP DIFFERENT

Duration Time

High Quality

Emergency Any Time

Easy To Stall

Leading Technology

Durable

Protection against electric shock Class II (Safety extra low voltage for fitting)
input voltage 220-240V AC 50-60Hz
AC Input power <3.5W AC Input
AC Input current <50mA
Power Factor >0.5
Max.casing temperature 70℃
Output voltage 20-28V
Output current Constant Current 100mA
 Output emergency power 3W max
Recharge time ≥16 hours
Duration 3hours
Battery pack  LiFePo4 battery 6.4V 1500mAh
Rated 500 charge discharge cycle
Battery voltage 3.2V/cell  (2S1P 6.4V 1500mAh)
Battery type IFR18650 (Ronda)

Green light on–Batter y is charging

Green light on–Batter y is fully charged

Indicator off–The device is something wrong and is malfunction

This unit recharge the batter y normally after reconnecting of battery

Manufacturer LUXEON 5050
LED Description  2.7 W
LED Colour Temperature  2700K-6500K
Lumen out-put 328 lm
Lumen factor 120lm/W
C0 Plane D50(19.4M)
